High Voltage Insulation Tester 35TΩ Insulation Resistance Tester with 35 Teraohms Resistance 10Kv Multi-Range Test for Motors Cables Test
5.0 (147 items)
Limited Time SaleUntil the end
17
50
12
$609.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $1,015.00
Product details
| Management number | 210914468 | Release Date | 2026/04/04 | List Price | $406.00 | Model Number | 210914468 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Function---Insulation resistance tester, voltage test, DC current test, capacitance test Basic condition:23℃±5℃，below 75%rh Rated voltage:250V、500V、1000V、2500V、5000V、10KV Insulation resistance range:0.01MΩ～35TΩ resolution：0.01MΩ
- Test Voltage---Test Voltage(V):rated voltage×（1±10%） DC Voltage Range:0～1000V Resolution: 0.1VAC Voltage Range:0～750V Resolution: 0.1V DC Current:0.1nA～6mA Resolution: 0.1nA
- Capacitance---Capacitance:10nF～50uFResolution: 10nF Output short-circuit Current:≥6mA@15KV Absorption Ratio and Polarization Index Measurement:Have Power Supply:12.6V rechargeable battery Backlight:Controllable gray screen backlight, suitable for use in dim places
- Dispaly---Dispaly mode:4-bit large LCD display, gray screen backlight LCD display size:108mm×65mm Instrument size:L/W/H：240mm×188mm×85mm USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
- USB Connect---Communication Line:USB communication line 1PC Test Line:High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage:500 groups, "FULL" symbol indicates that storage is full Data Review:Data review function: "MR" symbol display
- Overflow Display---Exceed measurement range overflow function: “> ” symbol display Alarm Function:Alarm when the measured value larger or smaller than the alarm setting value Power Consumption:Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max Measure:200mA Max(backlight off)
- Weight---Instrument weight:2750g(including battery) Battery voltage:When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down:automatic shutdown after 15 minutes boot Insulation Resistance:≥50MΩ(between Measuring line and housing) Pressure Resistance:AC3kV/50Hz 1min
- Working environment--Working Temperature and Humidity:－10℃～+50℃＜85%RH Storage Temperature and Humidity:－15℃～+55℃＜90%RH Suitable for Safety Regulations:IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grade 2、CAT Ⅲ 300V

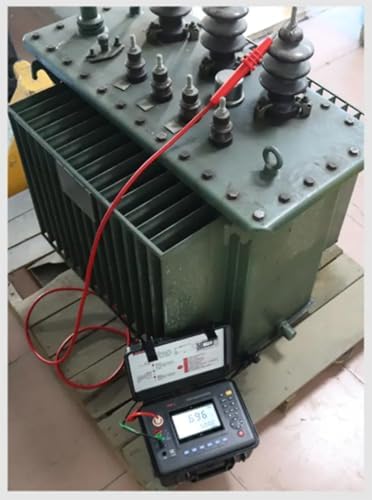

- Application---Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.

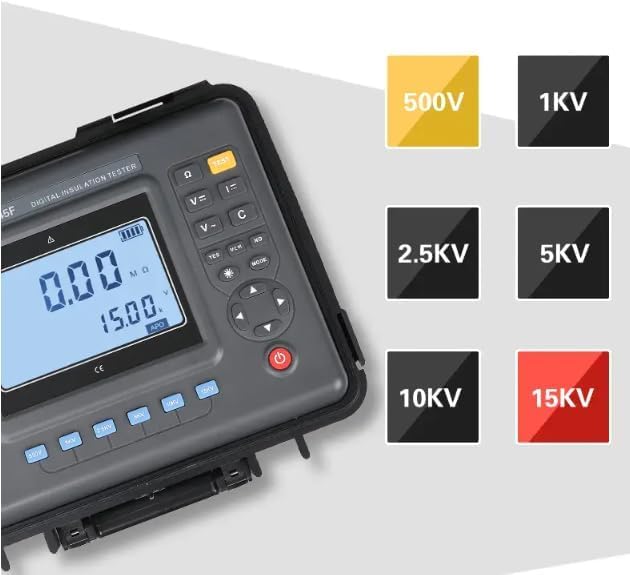

- 6 voltage levels---Digital insulation resistance meter consists of medium and large scale integrated circuits. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels). DC voltage measurement range is 0 ～ 1000V, AC voltage measurement range is 0 ～ 750V. DC current measurement range is 100pA-6mA. Capacitance measurement range is 10nF-50nF.
| Color | Grey |
|---|---|
| Model | VTSYIQI20240411150759VTSYIQI |
| Brand Name | VTSYIQI |
| Style Name | VTSYIQI20240411150759VTSYIQI |
| Manufacturer | VTSYIQI20240411150759VTSYIQI |
| Power Source | Battery Powered |
| Item Dimensions | 15.75 x 5.91 x 7.87 inches |
| Specification Met | Iec61010-1, Iec1010-2-31, Iec61557-1,5, Iec60529(ip54), Pollution Grade 2, Cat Ⅲ 300v |
| Included Components | main host |
| Upper Temperature Rating | 50 Degrees Celsius |
| Minimum Operating Voltage | 250 Volts |
